KINWIN 9 meter diesel bus

Category: Tags: , ,

Description

Overview

The HYK6901G 9M Diesel City Bus is a high-performance, reliable public transportation solution designed to meet modern urban mobility needs. Compliant with the EURO 6 emission standard, it balances power, efficiency, and passenger comfort, making it an ideal choice for city transit systems. With a robust design and comprehensive safety features, this bus ensures smooth operations and a pleasant riding experience for both drivers and passengers.

Core Specifications

1. Dimensions & Capacity

  • Overall Dimensions: 8990mm (L) × 2495/2550mm (W) × 3415mm (H, TBD), with a 4250mm wheelbase
  • Weight Parameters: 8980kg curb weight, 14500kg gross vehicle weight, and 5000/9500kg front/rear axle load

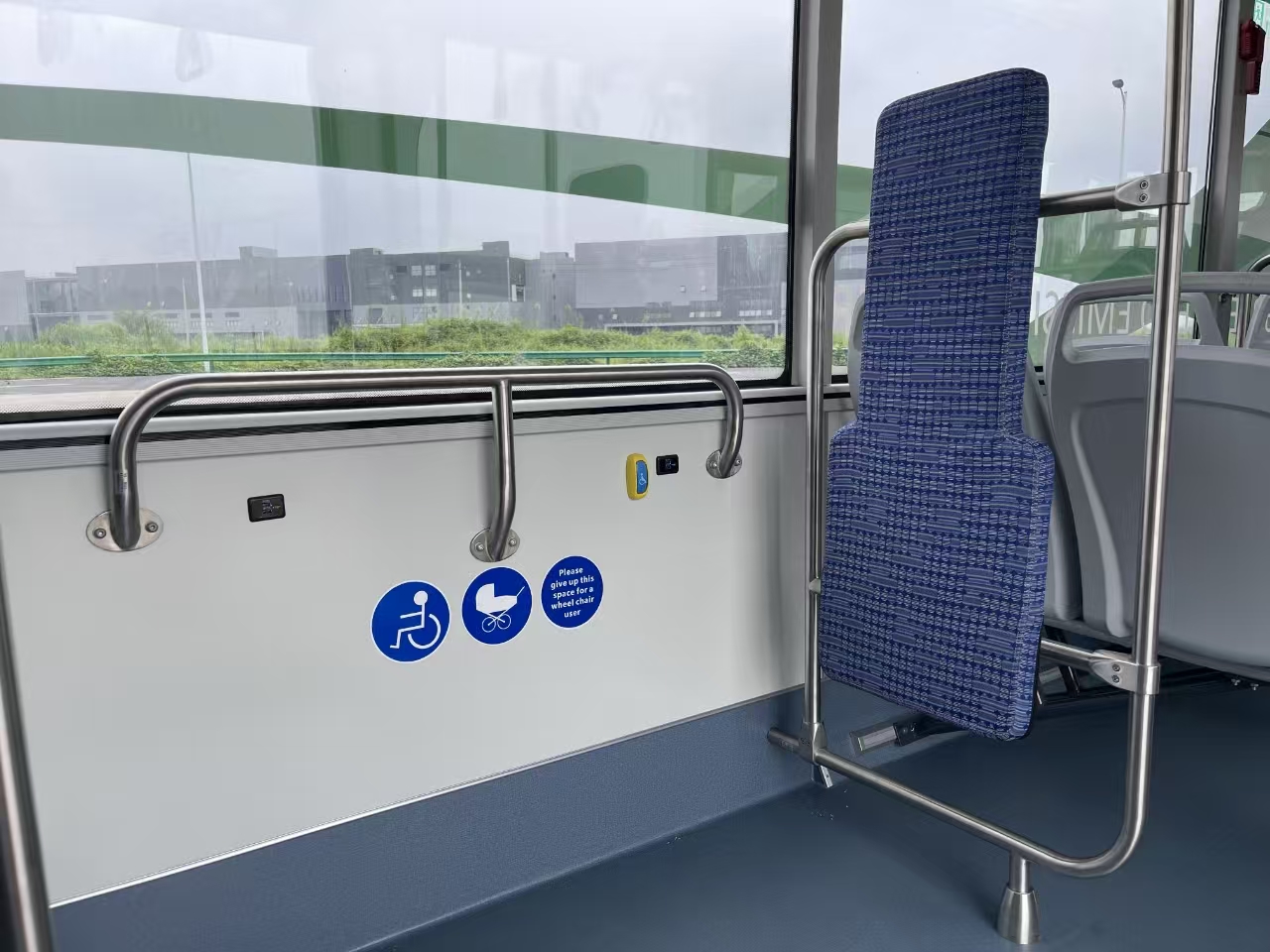

  • Passenger Capacity: Accommodates up to 68 passengers (24 fixed seats + wheelchair area with 2 folding seats), including dedicated priority seats for special groups

2. Power & Performance

  • Engine: Cummins D4.5EVIE220B diesel engine (EURO 6 standard), delivering 162kW power at 2300rpm
  • Transmission: ZF 6AP1020B 6-speed gearbox with integrated retarder for smooth shifting
  • Key Performance: Maximum speed ≥69km/h, maximum gradeability ≥25%, minimum turning diameter ≤18m, and a driving range ≥300km
  • Chassis: Equipped with 5T front axle and 9.5T rear axle (both with disc brakes), front 2/rear 4 air suspension, and 255/70 R22.5 tires

Design & Comfort

1. Exterior & Body

  • Body Structure: Full integral load-bearing (monocoque) design for enhanced durability and safety

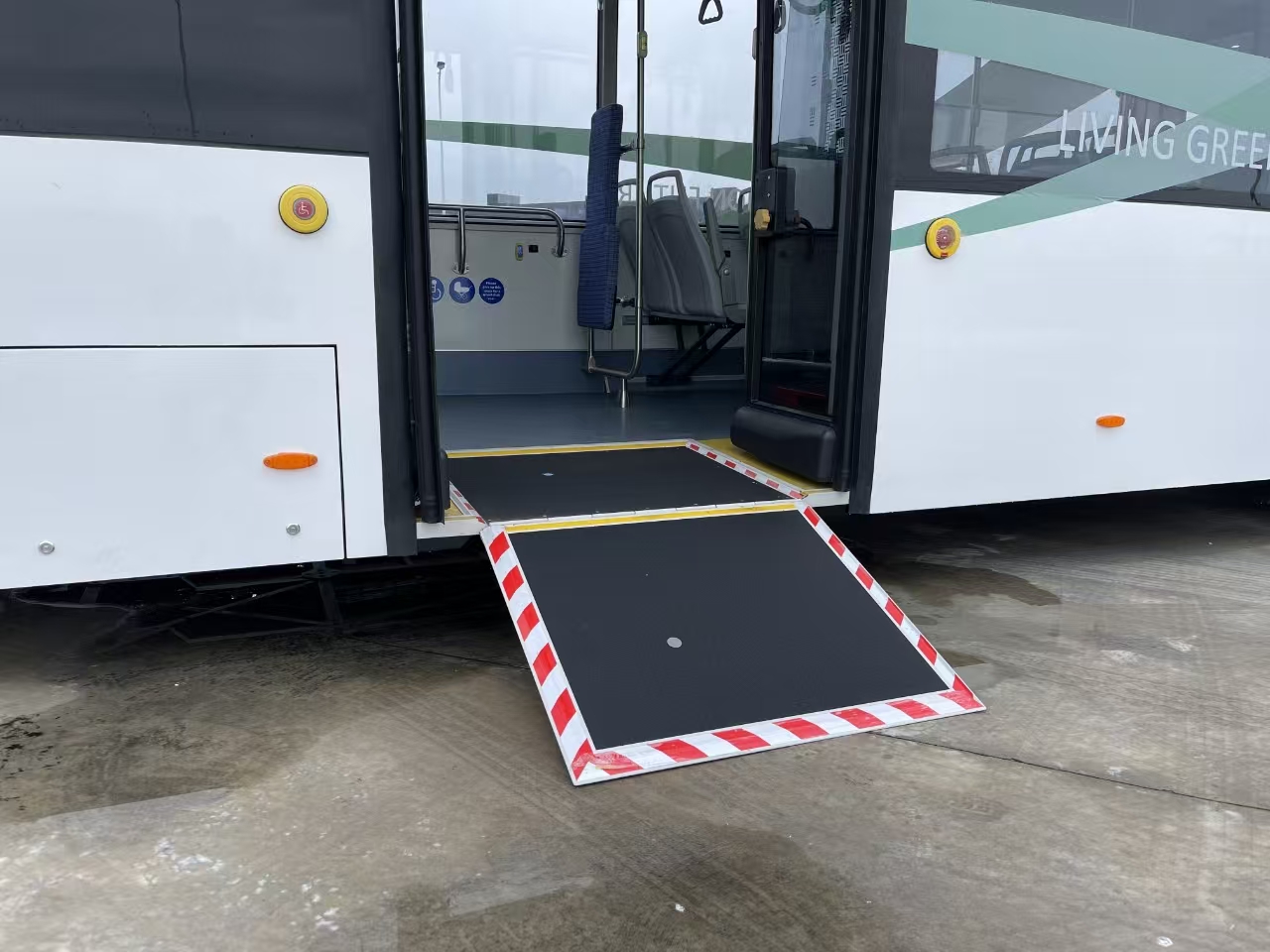

  • Doors: Electric pneumatic control – 1 single swing-in front passenger door (clear opening ≥700mm) and 1 double swing-in middle door (clear opening ≥1100mm) with manual disabled ramp
  • Glass & Mirrors: Laminated front windshield, tempered rear windshield, sliding side windows, and electric-adjustable rearview mirrors with heating function

2. Interior Amenities

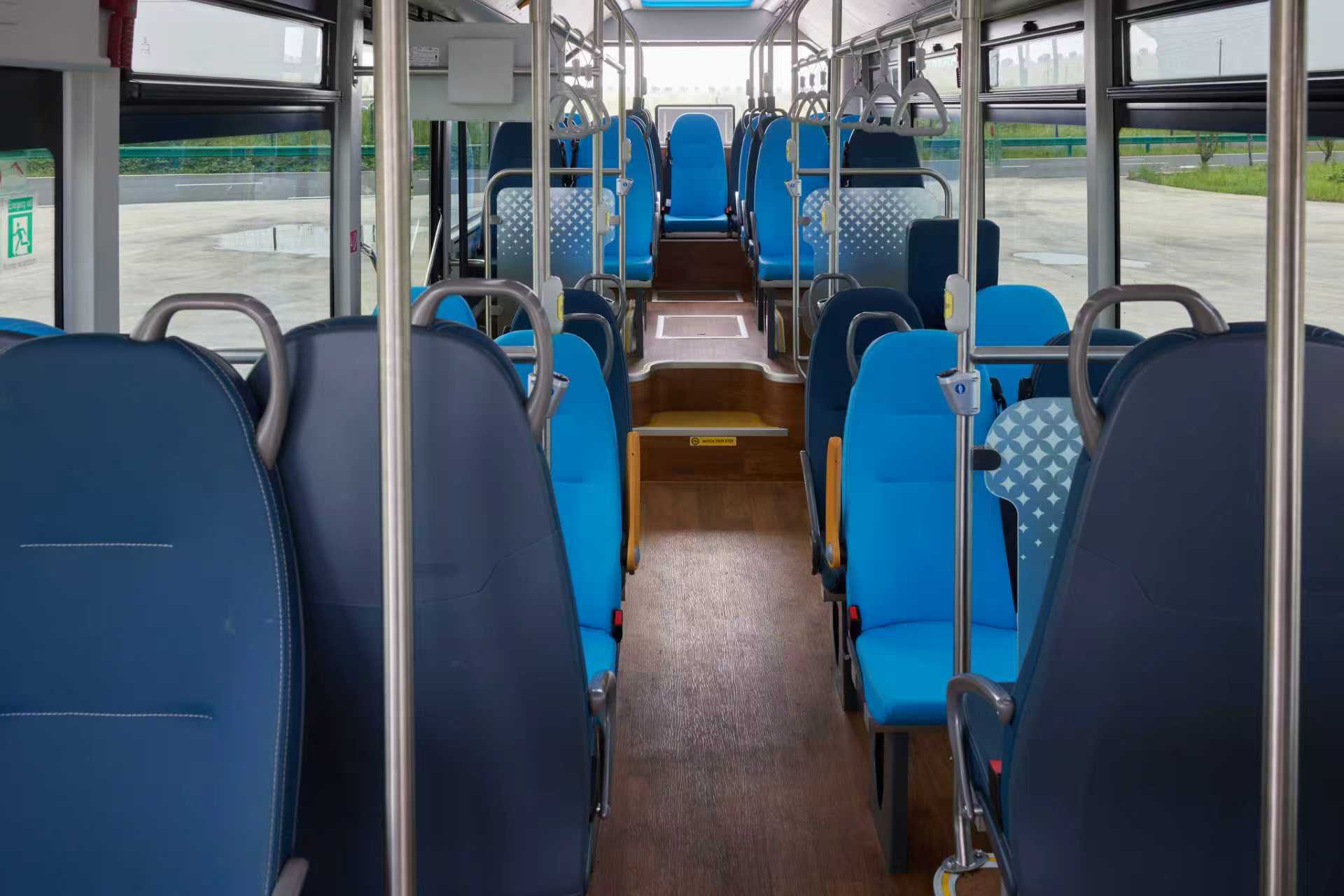

  • Seating: Premium air-suspension driver seat (with 3-point seatbelt) and 24 high-quality plastic passenger seats (Nanjing Ruili NL-05)
  • Climate Control: 28000Kcal air conditioning system (Songzhi brand) and dedicated heating system for all-weather comfort

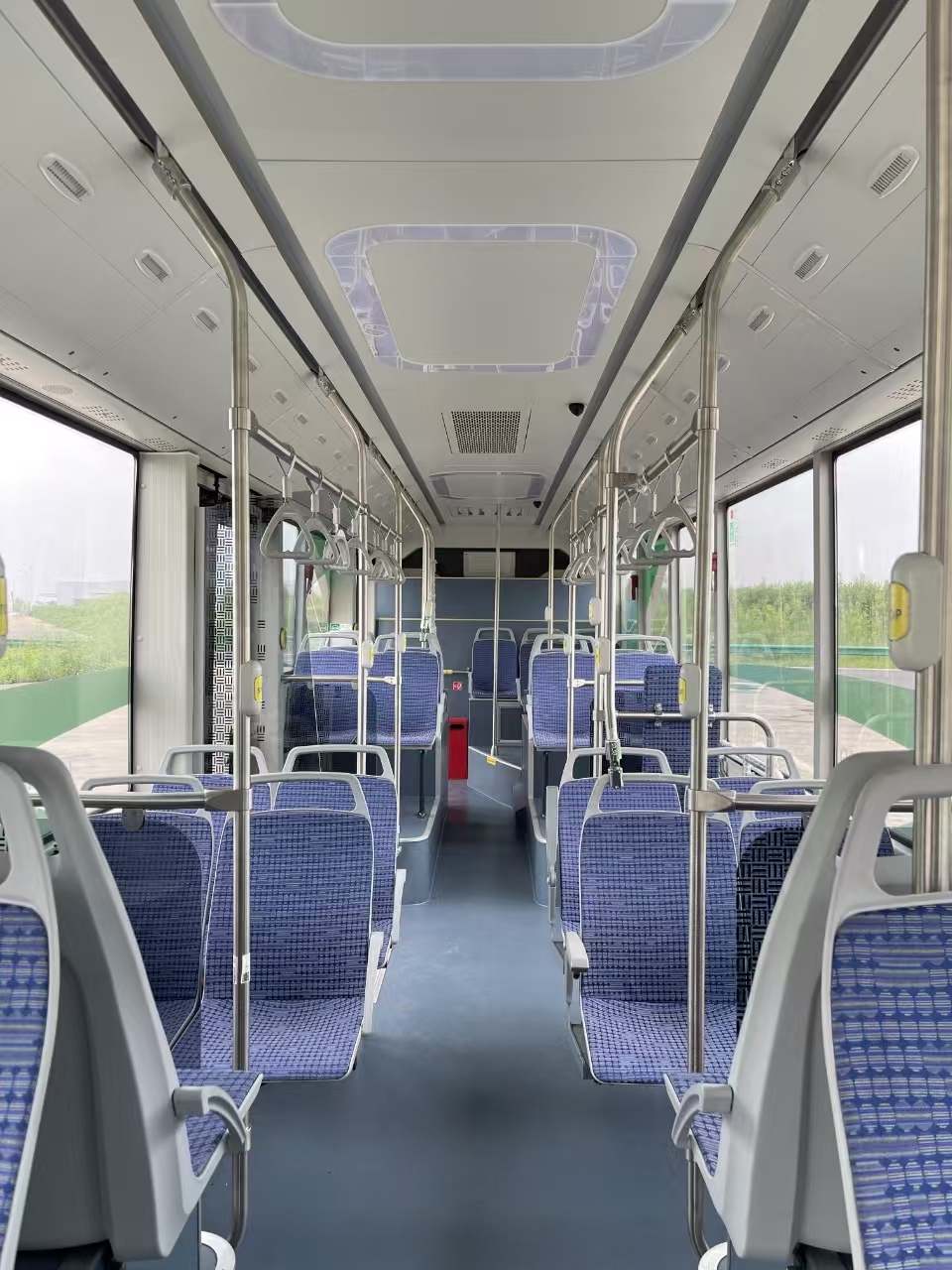

  • Convenience Features: Bamboo plastic floor with anti-slip covering, yellow knurled handrails with stop bells, 1 roof hatch with ventilator, and USB charging ports (Type C + USB) per passenger row

Safety & Technology

1. Safety Systems

  • Braking: Dual-circuit air brake system with spring energy storage brake, ABS/EBS + ECAS (WABCO brand) for reliable stopping power

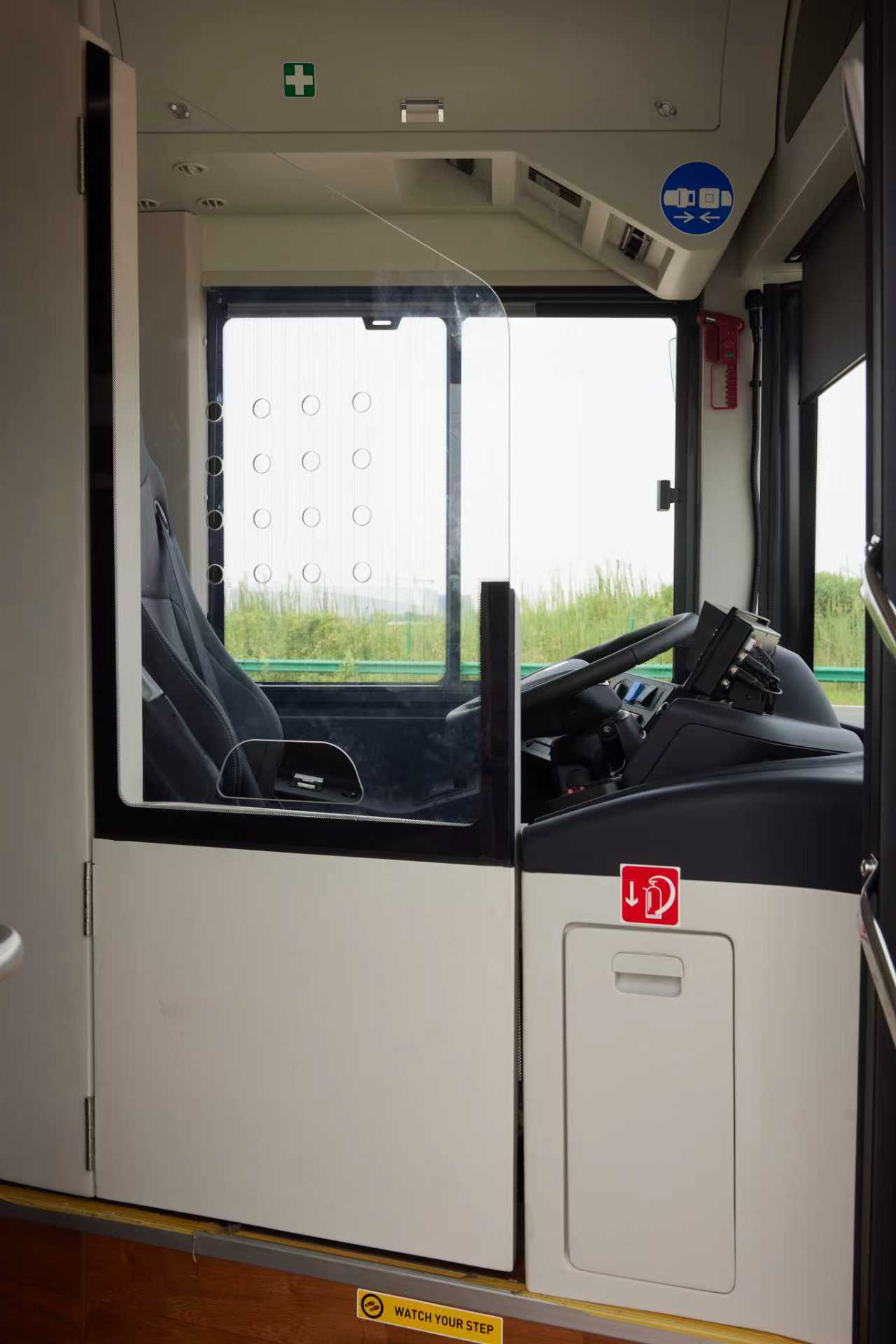

  • Protection Equipment: 2×4Kg fire extinguishers, 6 safety hammers, full-enclosure driver cabin, and reverse radar with multi-camera monitoring (covers reverse, driver, doors, and interior)
  • Compliance: Meets international safety standards, with dedicated wheelchair area complying with Chilean regulations

2. Electrical & Digital Features

  • Electrical System: 24V/160AH battery, on-board generator, and high-mount brake light
  • Digital Equipment: LED route displays (front/rear/side/interior, Guangzhou Tongda brand), tachograph, digital clock, MP3+Radio audio system, and on-board WIFI
  • Additional Tech: Rear engine compartment automatic fire extinguishing system (3 units) and tire pressure monitoring system (TPMS)

Warranty & Support

  • Warranty Period: 2 years or 120,000km (whichever comes first), ensuring long-term reliability and reduced maintenance costs
  • Customization: Flexible options for paint, interior trim, and additional equipment to meet specific regional or operational requirements
This 9M Diesel City Bus combines durability, efficiency, and passenger-centric design, making it a trusted solution for urban public transportation networks seeking to enhance service quality and operational efficiency.
